Luxul Switch Accessories

luxul switch accessories



10GB Single-Mode Fiber Simplex SFP+ Module 1310NM/1270NM DFB Laser 20km Over OS2 Fiber



10gb single mode fiber simplex sfp module 1310nm 1270nm dfb laser 20km over os2 fiber 10g sm sx lc



The 10G-SM-SX-LC is one pair of 10 Gb SFP+ SMF SX LC modules designed for use with Luxul Ethernet switches that have an SFP+ port. These modules are LC (Lucent Connector) format Small Form-Factor Pluggable+ (SFP+) operates at 1270/1330nm wavelength in Simplex (SX) mode to provide 10 Gigabit connectivity at distances up to 20 kilometers when using OS2 Single-Mode (SMF) fiber optic cable. It is provided particularly for connecting Luxul managed switches that have 10 Gigabit uplink/stacking ports.



FEATURES:

  • 10 Gigabit bi-directional performance
  • Single-mode mini GBIC module operates at 1270/1330nm
  • Simplex LC connector
  • Maximum transmission distance of 20 kilometers
  • Use with OS2 fiber
  • Compliant with IEEE 802.3z standards
  • Hot-pluggable
  • Three-year limited warranty





10GB Single-Mode Fiber Duplex SFP+ Module 1310NM DFB Laser 10km Over OS2 Fiber



10gb single mode fiber duplex sfp module 1310nm dfb laser 10km over os2 fiber



The 10G-SM-DX-LC as a 10 Gb SFP+ module designed for use with Luxul Ethernet switches that have an SFP+ port. These Small Form-Factor Pluggable+ (SFP+) modules support Single-Mode (SMF) fiber optic cable and operate at 1310nm wavelength in Duplex (DX) mode to provide 10 Gigabit connectivity at distances up to 10 kilometers when using OS2 fiber optic cable. It is provided particularly for connecting Luxul managed switches that have 10 Gigabit uplink/stacking ports.



FEATURES:

  • Compliant with SFF-8431 SFP+ MSA
  • Compliant with IEEE 802.3ae
  • 10G BASE-LW/LR 1310nm DFB transmitter
  • PIN photo-detector
  • 2-wire interface for management
  • Specifications compliant with SFF 8472 digital diagnostic monitoring
  • Interface for optical transceivers
  • All-metal housing for superior EMI performance
  • Low power consumption
  • Three-year limited warranty





10GB Multimode Fiber Duplex SFP+ Module 850NM VCSEL 300M Over OM3 Fiber



10gb multimode fiber duplex sfp module 850nm vcsel 300m over om3 fiber



The 10G-MM-DX-LC 10 Gb SFP+ Module MMF DX LC is designed for use with Luxul Ethernet switches that have an SFP+ port. This Small Form-Factor Pluggable+ (SFP+) module operates at 850nm wavelength in Duplex (DX) mode to provide 10 Gigabit connectivity at distances up to 300 meters when using OM3 Multi-Mode (MM) fiber optic cable. The module can be used in the SFP+ slot of any compatible Luxul switch. It is provided particularly for connecting Luxul managed switches that have 10 Gigabit uplink/stacking ports.



FEATURES:

  • 10 Gigabit bi-directional performance
  • Multi-mode Mini GBIC module operates at 850nm
  • Duplex LC connector
  • Maximum transmission distance of 300 meters
  • Use with OM3 fiber
  • Compliant with IEEE 802.3z standards
  • Hot-pluggable
  • Three-year limited warranty

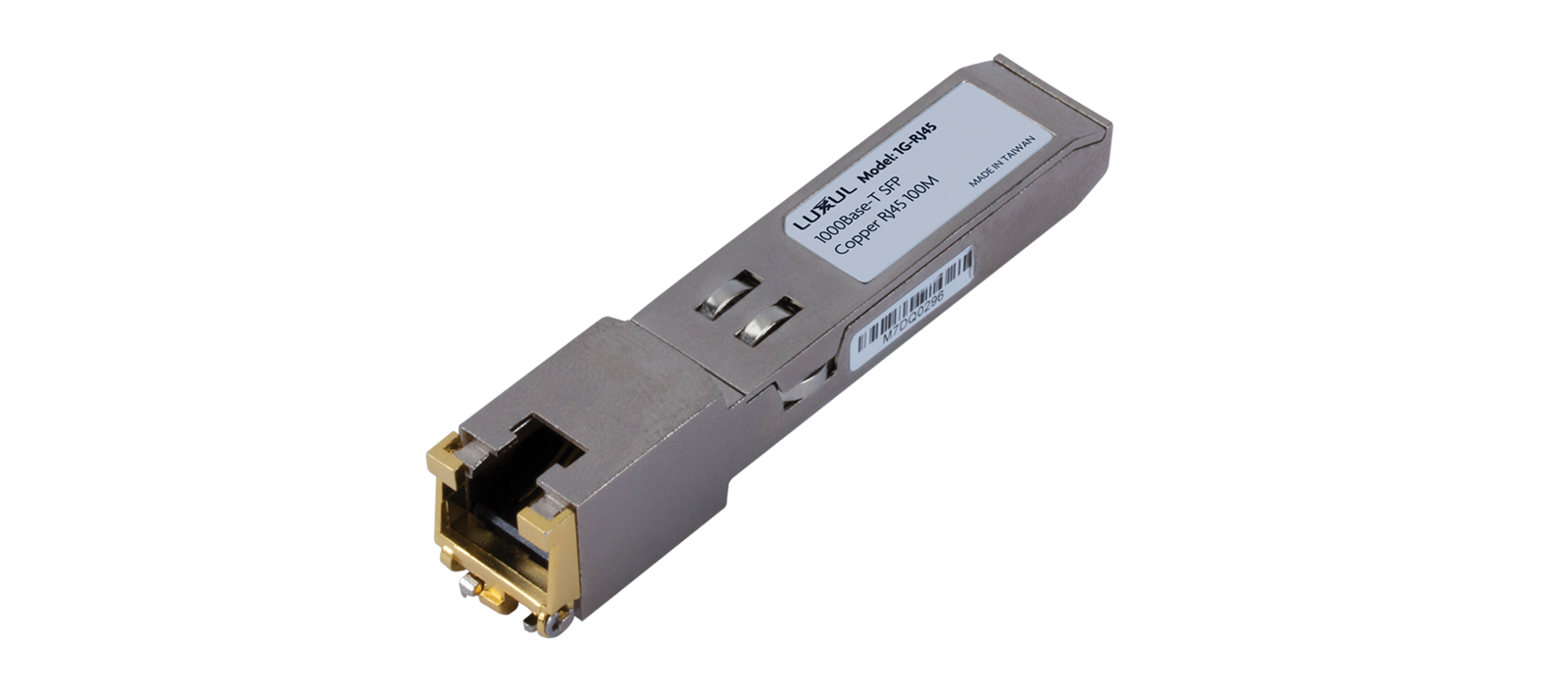

1000 Base-T RJ-45 SFP Module 100M Over CAT 5 UTO Cable



1000 base t rj 45 sfp module 100m over cat 5 utp cable 1g rj45



The 1G-RJ45 is a 1 Gb SFP RJ-45 module designed for use with Luxul Ethernet switches that have an SFP port. This RJ-45 connector Small Form-Factor Pluggable (SFP) module supports distances of up to up to 100 m on standard CAT 5 UTP copper cable for 1 Gigabit connectivity to any device connected into the SFP slot of any compatible Luxul switch.



FEATURES:

  • Compliant with IEEE 802.3ab/ Gigabit Ethernet Standard
  • Compliant with SFP MSA specifications
  • Hot-pluggable SFP footprint
  • 10/100/1000BASE-T with SGMII interface
  • Supports MDIX
  • Three-year limited warranty





10G Base-T RJ-45 SFP+ Module 30M Over CAT 6A/7 Cable



10G Base-T RJ-45 SFP+ Module 30M Over CAT 6A/7 Cable 10g rj45



The 10G-RJ45 is a 10 Gb SFP+ RJ-45 module designed for use with Luxul Ethernet switches that have an SFP+ port. This RJ-45 connector Small Form-Factor Pluggable+ (SFP+) module supports distances of up to 30m on standard CAT 6a/7 UTP copper cable for 10GBASE-T 10 Gigabit bi-directional connectivity to any device connected into the SFP+ slot of any compatible Luxul switch. It is provided particularly for connecting Luxul managed switches that have 10 Gigabit uplink/stacking ports.



FEATURES:

  • Supports links up to 30m using CAT 6a/7 cable
  • Compliant with IEEE 802.3az
  • Compliant with SFF-8431 and SFF-8432 MSA
  • Low power consumption (2.5W max @ 30m)
  • Auto-negotiates with other 10GBase-T PHYs
  • Auto-sense MDI/MDIX
  • Three-year limited warranty





Direct-Attach Cable 0.5M 10G Copper Passive



direct attach cable 0.5 10gb copper passive 10gb cab 05




The 10G-CAB-05 .5 Meter Fiber Cable w/SFP+ Modules is designed for use with Luxul managed switches that have 10 Gigabit stacking ports. It is .5M long and provides a cost-effective short-run alternative to using more expensive fiber-based SFP+ modules. It offers a plug-and-play method for stacking two Luxul switches and when multiple 10G-CAB-05 are purchased, it can be used to stack up to up to 16 Luxul switches.



FEATURES:

  • 10 Gigabit bi-directional performance
  • Hot-pluggable
  • With integrated cable and modules, ready for immediate use (no termination required)
  • Three-year limited warranty

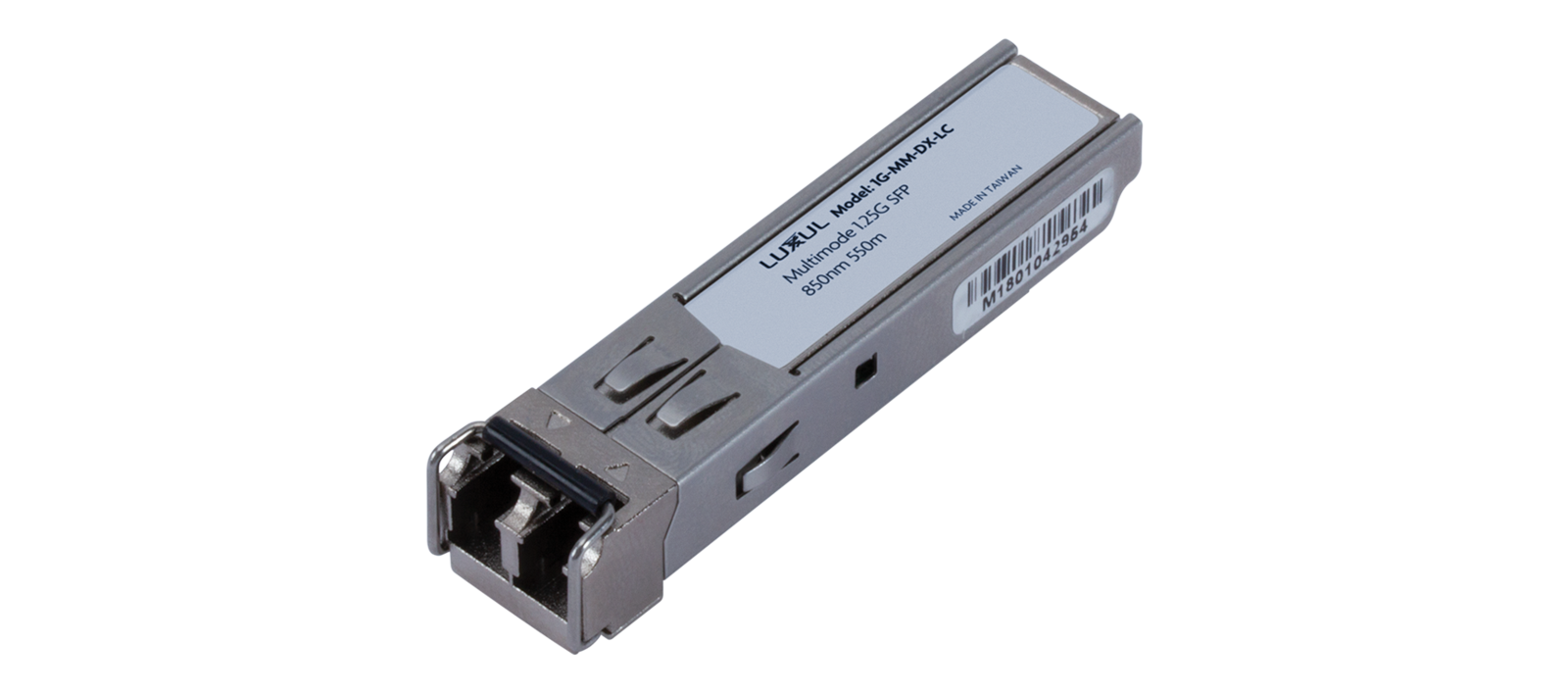

1GB Multimode Fiber Duplex SFP Module 850NM VCSEL 550M Over OM2 Fiber



1gb multimode fiber duplex sfp module 850nm vcsel 550m over om2 fiber 1g mm dx lc



The 1G-MM-DX-LC 1 Gb SFP Module is designed for use with Luxul Ethernet switches that have an SFP port. This SFP module operates at 850nm wavelength in Duplex (DX) mode to provide 1 Gigabit connectivity at distances up to 550 meters when using OM2 Multi-Mode (MM) fiber optic cable terminated with a Duplex LC connector. OM1 & OM3 fibers can also be used. The module can be used to interconnect into the SFP slot of any compatible Luxul switch.



FEATURES:

  • 1 Gigabit bi-directional performance
  • Multi-mode Mini GBIC module operates at 850nm
  • Duplex LC connector
  • Maximum transmission distance of 550 meters
  • Compatible with OM1, OM2, & OM3 fiber
  • Compliant with IEEE 802.3z standards
  • Hot-pluggable
  • Three-year limited warranty
