Machine to Machine communication (M2M) and the Internet of Things (IoT)

Pro Signal 4G and Signal 3G

How it Works





Using an outside antenna, the amplifier (booster) system detects and collects the existing cell signal from outdoors.





The amplifier receives this signal through an outside antenna cable; boosting it to produce the best possible cell signal.





Using inside antennas, the amplifier broadcasts the boosted signal indoors for use by anyone with a phone or cellular device.





Product Description (Pro Signal 4G)

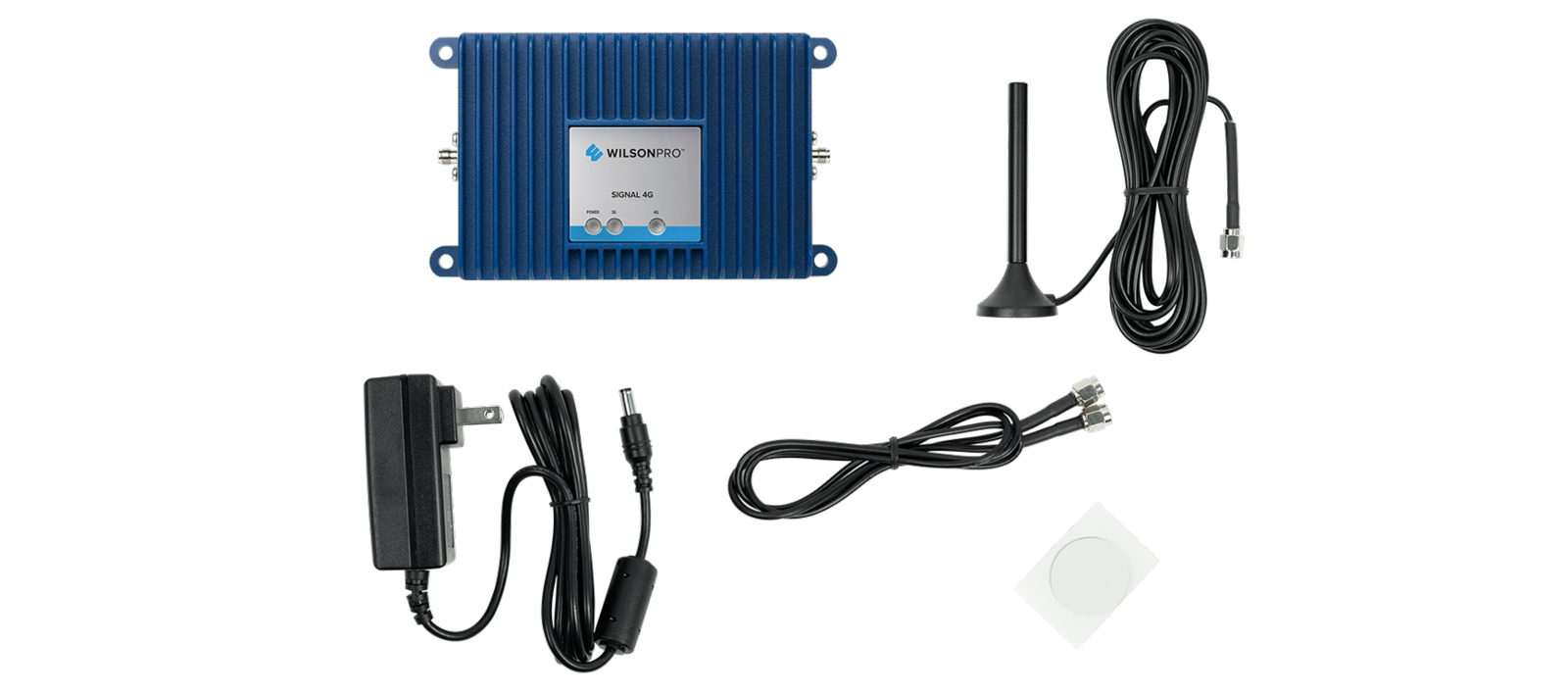

Developed especially for M2M installations, the WilsonPro Signal 4GTM is based on the same field-tested, market-proven technology powering weBoost consumer cellular signal boosters. The Signal 4G is ready to integrate with cellular modems, providing a reliable signal that ensures successful data transfer. This booster kit works with all North American wireless service provider networks. The Signal 4G's compact form factor makes it an ideal component for installations in weak signal environments. The Signal 4G kit includes the weBoost 4-inch mini magnet cellular antenna for maximum system gain to overcome weak signals. The Signal 4G is FCC and IC certified.

Availability of the Signal 4G allows OEMs to source a compact, a powerful and highly compatible signal booster that is ready to deploy. Integrators can more easily custom design M2M communication systems that fit in tightly constrained spaces. In locations where cellular signals are weak due to distance from the cell site, terrain features, or building materials like concrete and steel, the Signal 4G provides a strong, reliable signal.



Key Features: Pro Signal 4G (Model: 460119)

• Direct connect amplifier - connects directly to data modem
• Improves transmissions speeds while reducing resending of data
• Configurable to fit virtually any M2M (Machine to Machine) installation
• Boosts 4G, 3G, and 2G for all North American cellular networks
• Bi-directional amplified signals to and from the cell tower
• Auto-power control ensures maximum output
• Passive RF bypass failover. If the Signal 4G loses power, the amplifier is "bypassed" so that the external antenna maintains a connection to the modem
• Self-optimizing design minimizes installation time
• Three-year warranty
• FCC certified



Specs

Model	460119
Connectors	SMA Female
Dimensions	1.25 x 3.5 x 6.25 in
Frequency	Band 5 850 MHz Band 12 700 MHz Band 4 1700/2100 MHz Band 13 700 MHz Band 25/2 1900 MHz
Impedance	50 Ohm
Max Gain	15 dB
Power	110/240 V AC, 50 -60 Hz, 5 V DC - 5A
Weight	1.085





Product Description (Pro Signal 3G)

Developed specifically for M2M/IoT installations, the WilsonPro Signal 3G™ is based on the same field-tested, market-proven technology that powers all Wilson’s cell signal boosters. The Signal 3G is ready to integrate with cellular modems to provide a reliable signal that ensures successful data transfer. This booster kit works with all U.S. and Canada wireless service provider networks. The Signal 3G’s compact form factor makes it an ideal component for M2M/IoT installations in weak signal environments. The Signal 3G is FCC certified to the latest technical standards for cell signal boosters. Availability of the Signal 3G allows OEMs to source a compact, a powerful and highly compatible signal booster that is ready to deploy. Integrators can more easily custom design M2M/IoT communication systems that fit tightly constrained spaces.

A significant percentage of M2M/IoT devices will continue for the foreseeable future to rely on current wireless networks. In locations where cellular signals are weak due to distance from the cell site, terrain features, or building materials like concrete and steel, the Signal 3G provides a strong, reliable signal.



Key Features: Pro Signal 3G (Model: 460109)

• Direct connect amplifier - connects directly to data modem
• Improves transmissions speeds while reducing resending of data
• Configurable to fit virtually any M2M (Machine to Machine) installation
• Boosts 3G and 2G for all North American cellular networks
• Bi-directional amplified signals to and from the cell tower
• Auto-power control ensures maximum output
• Self-optimizing design minimizes installation time
• Three-year warranty
• FCC certified



Specs

Model	460109
Connectors	SMA Female
Dimensions	.75 x 1.75 x 4 in
Frequency	Band 25/2 1900 MHz Band 5 850 MHz
Impedance	50 Ohm
Max Gain	15 dB
Power	110/240 V AC, 50-60Hz, 5 V DC-2A
Weight	0.175 lbs
