WilsonPro Enterprise 1300

Remote Monitored & Managed Solutions: WilsonPro Cloud

wilsonpro pro 1300 enterprise 460149 460150

Enterprise 1300 (Wall Mount or Rack)

wilsonpro enterprise 1300 460149 460150



Enterprise 1300 (Wall Mount - Model 460149)

wilsonpro enterprise 1300 wall mount 460149





How it Works (Wall Mount)

wilsonpro 1300 wall mount





Using an outside antenna, the amplifier (booster) system detects and collects the existing cell signal from outdoors.





The amplifier receives this signal through an outside antenna cable; boosting it to produce the best possible cell signal.





Using inside antennas, the amplifier broadcasts the boosted signal indoors for use by anyone with a phone or cellular device.





Product Description (Wall Mount)



The WilsonPro Enterprise 1300 in-building cellular amplifier that represents the latest in cell signal boosting technology—starting with its all-new Multi-Tower Targeting Technology™.

Depending on cell tower locations, it can run up to three outdoor antennas; each dedicated to a specific frequency band to collectively amplify signals from multiple towers. Based on user need or preference, Enterprise 1300 also utilizes “common mode” as a default; requiring only a single outdoor antenna to deliver enhanced cell signal coverage within an area up to 40,000 sq. ft.

With wired or LTE access (using the built-in cellular modem) to the WilsonPro Cloud for remote functionality, integrators and building managers can remotely manage, monitor, and adjust the Enterprise 1300 using a smartphone or tablet. Immediate notifications are received via email or text. Designed to reach towers at greater distances, it also produces up to 26 dBm in uplink and up to 17 dBm in downlink—making it one of the most powerful amplifiers within its price range.

Designed for wall-mount configuration. A rack-mount option available (Enterprise 1300R.)

5G Ready - WilsonPro cellular signal amplifiers will work for the next decade and beyond.



Key Features: Enterprise 1300 (Model: 460149)

  • Wired or LTE access (using the built-in cellular modem) to the WilsonPro Cloud
  • Remote management, monitoring, and adjustment of amplifier via smartphone or tablet
  • XDR Technology (eXtended Dynamic Range) automatically adjusts gain and will remain operational, even in the presence of a very strong outside signal
  • +26 dBm maximum uplink power, +17 dBm maximum downlink power
  • Covers up to 40,000 sq. ft. with enhanced cell signal on all available network speeds
  • Color LCD touchscreen display, indicating gain and power levels of each band, for easy antenna setup, control, and troubleshooting
  • Wall-mount installation
  • FCC-approved and compatible with all US mobile carrier networks
  • Three outdoor antenna ports for exclusive Multi-Tower Targeting Technology



Specs

Model 460149
Connectors N-Female
Dimensions 19 x 12x 2.5 in
Frequency

Band 12/17 700 MHz

Band 25 1900 MHz

Band 13 700 MHz

Band 5 850 MHz

Band 4 1700/2100 MHz

Impedance 50 Ohm
Max Gain 70 dB
Power 110 - 240 V AC, 50 - 60 Hz, 30 W
Weight 16.515 lbs

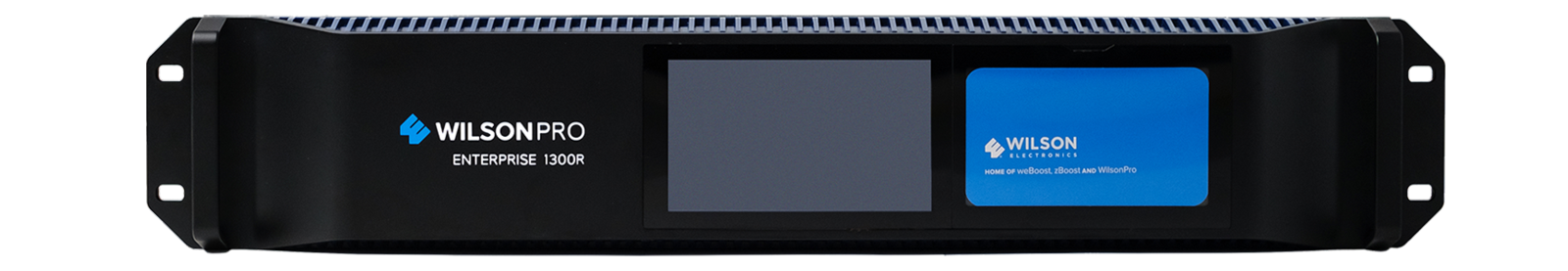

Enterprise 1300R (Rack 1U - Model: 460150)

wilsonpro enterprise 1300r 460150



How it Works (Rack)

wilsonpro enterprise 1300r how it works 460150





Using an outside antenna, the amplifier (booster) system detects and collects the existing cell signal from outdoors.





The amplifier receives this signal through an outside antenna cable; boosting it to produce the best possible cell signal.





Using inside antennas, the amplifier broadcasts the boosted signal indoors for use by anyone with a phone or cellular device.





Product Description (Rack Mount)



The WilsonPro Enterprise 1300R in-building cellular amplifier that represents the latest in cell signal boosting technology—starting with its all-new Multi-Tower Targeting technology.

Depending on cell tower locations, it can run up to three outdoor antennas; each dedicated to a specific frequency band to collectively amplify signals from multiple towers. Based on user need or preference, Enterprise 1300R also utilizes “common mode” as a default; requiring only a single outdoor antenna to deliver enhanced cell signal coverage within an area up to 40,000 sq. ft per amplifier.

With wired or LTE access (using the built-in cellular modem) to the WilsonPro Cloud for remote functionality, integrators and building managers can remotely manage, monitor, and adjust the Enterprise 1300R using a smartphone or tablet. Immediate notifications are received via email or text. Designed to reach towers at greater distances, it also produces up to 26 dBm in uplink and up to 17 dBm in downlink—making it one of the most powerful amplifiers within its price range.

Designed for rack-mount configuration. A wall-mount option available (Enterprise 1300.)

5G Ready - WilsonPro cellular signal amplifiers will work for the next decade and beyond.



Key Features: Enterprise 1300R (Model: 460150)

  • Wired or LTE access (using the built-in cellular modem) to the WilsonPro Cloud
  • Remote management, monitoring, and adjustment of amplifier via smartphone or tablet
  • XDR Technology (eXtended Dynamic Range) automatically adjusts gain and will remain operational, even in the presence of a very strong outside signal
  • +26 dBm maximum uplink power, +17 dBm maximum downlink power
  • Covers up to 40,000 sq. ft. with enhanced cell signal on all available network speeds
  • Color LCD touchscreen display, indicating gain and power levels of each band, for easy antenna setup, control, and troubleshooting
  • FCC-approved and compatible with all US mobile carrier networks
  • Rack-mount installation
  • Three outdoor antenna ports for exclusive Multi-Tower Targeting Technology



Specs

Model 460150
Connectors N-Female
Dimensions 17.5 x 12x 3.75 in
Frequency

Band 5 850 MHz

Band 4 1700/2100 MHz

Band 13 700 MHz

Band 12/17 700 MHz

Band 25 1900 MHz

Impedance 50 Ohm
Max Gain 70 dB
Power 110 - 240 V AC, 50 - 60 Hz, 30 W
Weight 9.66 lbs



More Photos - Enterprise 1300 (Wall Mount)

wilsonpro enterprise 1300 460149 amp

wilsonpro 1300 enterprise amp 460149

wilsonpro 1300 enterprise kit 460149



More Photos - Enterprise 1300 (Rack Mount)

wilsonpro 460150 front

wilsonpro enterprise 1300 460150 back

wilsonpro enterprise 1300 460150 kit
