WilsonPro Enterprise 4300

Remote Monitored & Managed Solutions: WilsonPro Cloud

wilsonpro enterprise 4300 460152 460153

Enterprise 4300 (Wall Mount or Rack)

wilsonpro enterprise 4300 460152 460153





Enterprise 4300 (Wall Mount - Model 460152)

wilsonpro enterprise 4300 model 460152 kit and amp



How it Works (Wall Mount)

wilsonpro enterprise 4300 how it works 460152





Using an outside antenna, the amplifier (booster) system detects and collects the existing cell signal from outdoors.





The amplifier receives this signal through an outside antenna cable; boosting it to produce the best possible cell signal.





Using inside antennas, the amplifier broadcasts the boosted signal indoors for use by anyone with a phone or cellular device.





Product Description (Wall Mount)



The WilsonPro Enterprise 4300 in-building cellular amplifier is the culmination of the latest cell signal boosting innovations—centered on its all-new Multi-Tower Targeting technology.

Depending on cell tower locations, it can run up to three outdoor antennas; each dedicated to a specific frequency band to collectively amplify signals from multiple towers. Based on user need or preference, Enterprise 4300 can also utilize “common mode” as its default; requiring only a single outdoor antenna to deliver enhanced cell signal coverage to its four indoor antennas.

With wired or LTE access (using the built-in cellular modem) to the WilsonPro Cloud for remote functionality, integrators and building managers can remotely manage, monitor, and adjust the Enterprise 4300 using a smartphone or tablet. Immediate notifications are received via email or text. Designed to reach towers at greater distances, it also produces up to 26 dBm in uplink and up to 17 dBm in downlink—making it one of the most powerful amplifiers within its price range.

Relying on its four independently controlled indoor antenna ports, equipped with up to 17 dBm downlink power of their own, the Enterprise 4300 amplifies coverage area up to 100,000 sq. ft per amplifier.

Designed for wall-mount configuration. A rack-mount option available (Enterprise 4300R.)

5G Ready - WilsonPro cellular signal amplifiers will work for the next decade and beyond.



Key Features: Enterprise 4300 (Model: 460152)

  • Four independently controlled indoor antenna ports to power four indoor antennas
  • Wired or LTE access (using the built-in cellular modem) to the WilsonPro Cloud
  • Remote management, monitoring, and adjustment of amplifier via smartphone or tablet
  • XDR Technology (eXtended Dynamic Range) automatically adjusts gain and will remain operational, even in the presence of a very strong outside signal
  • +26 dBm max uplink power, +17 dBm max downlink power on each indoor antenna port
  • Covers up to 100,000 sq. ft. per amplifier with enhanced cell signal on all available network speeds
  • Color LCD touchscreen display, indicating gain and power levels of each band, for easy antenna setup, control, and troubleshooting
  • Wall-mount installation
  • FCC-approved and compatible with all US mobile carrier networks
  • Three outdoor antenna ports for exclusive Multi-Tower Targeting Technology



Specs

Model 460152
Connectors N-Female
Dimensions 19 x 12 x 2.5 in
Frequency

Band 25 1900 MHz

Band 4 1700/2100 MHz

Band 13 700 MHz

Band 5 850 MHz

Band 12/17 700 MHz

Impedance 50 Ohm
Max Gain 70 dB
Power 110 - 240 V AC, 50 - 60 Hz, 30 W
Weight 16.93 lbs





Enterprise 4300 (Rack Mount - Model 460153)

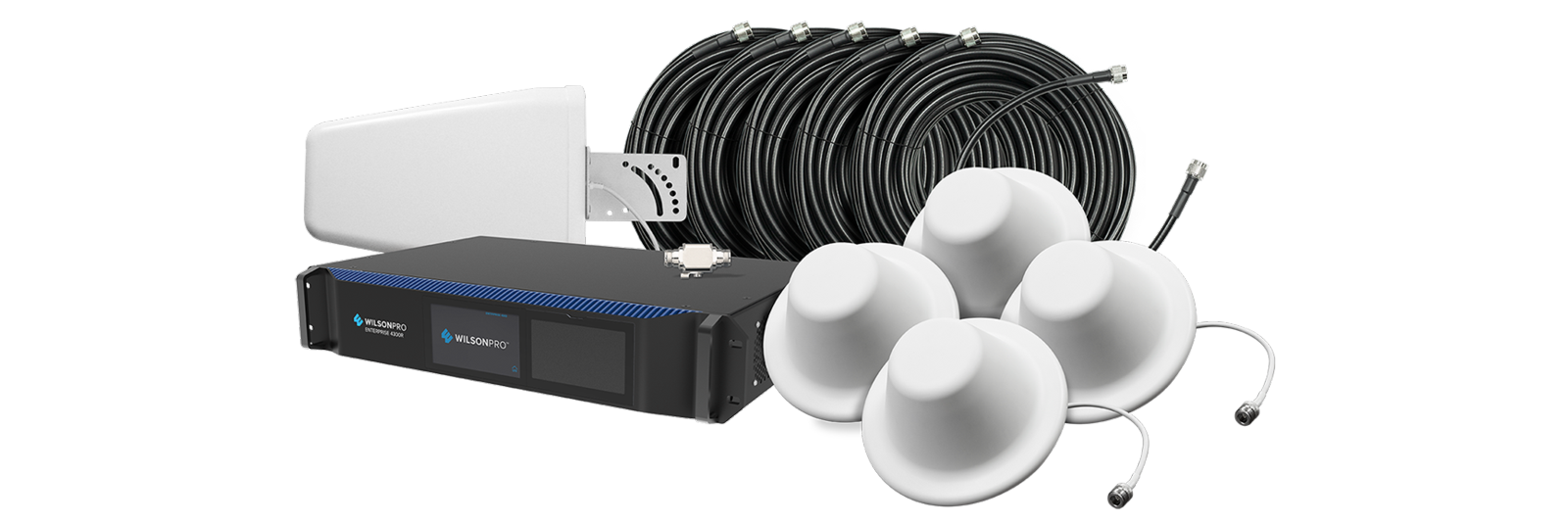

wilsonpro enterprise 4300r kit and amp 460153



How it Works (Rack Mount)

wilsonpro enterprise rack how it works 460153





Using an outside antenna, the amplifier (booster) system detects and collects the existing cell signal from outdoors.





The amplifier receives this signal through an outside antenna cable; boosting it to produce the best possible cell signal.




Using inside antennas, the amplifier broadcasts the boosted signal indoors for use by anyone with a phone or cellular device.





Product Description (Rack Mount)


The WilsonPro Enterprise 4300R in-building cellular amplifier is the culmination of the latest cell signal boosting innovations—centered on its all-new Multi-Tower Targeting technology.

Depending on cell tower locations, it can run up to three outdoor antennas; each dedicated to a specific frequency band to collectively amplify signals from multiple towers. Based on user need or preference, Enterprise 4300R can also utilize “common mode” as its default; requiring only a single outdoor antenna to deliver enhanced cell signal coverage to its four indoor antennas.

With wired or LTE access (using the built-in cellular modem) to the WilsonPro Cloud for remote functionality, integrators and building managers can remotely manage, monitor, and adjust the Enterprise 4300R using a smartphone or tablet. Immediate notifications are received via email or text. Designed to reach towers at greater distances, it also produces up to 26 dBm in uplink and up to 17 dBm in downlink—making it one of the most powerful amplifiers within its price range.

Relying on its four independently controlled indoor antenna ports, equipped with up to 17 dBm downlink power of their own, the Enterprise 4300R amplifies coverage area up to 100,000 sq. ft per amplifier.

Designed for rack-mount configuration. A wall-mount option available (Enterprise 4300.)

5G Ready - WilsonPro cellular signal amplifiers will work for the next decade and beyond.



Key Features: Enterprise 4300R (Model: 460153)

  • Four independently controlled indoor antenna ports to power four indoor antennas
  • Wired or LTE access (using the built-in cellular modem) to the WilsonPro Cloud
  • Remote management, monitoring, and adjustment of amplifier via smartphone or tablet
  • XDR Technology (eXtended Dynamic Range) automatically adjusts gain and will remain operational, even in the presence of a very strong outside signal
  • +26 dBm max uplink power, +17 dBm max downlink power on each indoor antenna port
  • Covers up to 100,000 sq. ft. per amplifier with enhanced cell signal on all available network speeds
  • Color LCD touchscreen display, indicating gain and power levels of each band, for easy antenna setup, control, and troubleshooting
  • Rack-mount installation
  • FCC-approved and compatible with all US mobile carrier networks
  • Three outdoor antenna ports for exclusive Multi-Tower Targeting Technology



Specs

Model 460153
Connectors N-Female
Dimensions 17.5 x 12 x 3.75 in
Frequency

Band 12/17 700 MHz

Band 5 850 MHz

Band 25 1900 MHz

Band 13 700 MHz

Band 4 1700/2100 MHz

Impedance 50 Ohm
Max Gain 70 dB
Power 110 - 240 V AC, 50 - 60 Hz, 30 W
Weight 9.86 lbs



More Photos - Enterprise 4300 (Wall Mount)

wilsonpro enterprise 4300 460152 amp

wilsonpro enterprise 4300 460152 side view

wilsonpro 4300 kit 460152



More Photos - Enterprise 4300R (Rack Mount)

wilsonpro enterprise 4300r amp 460153

wilsonpro enterprise 4300r back view 460153

wilsonpro enterprise 4300r kit 460153
