WilsonPro Pro 1100

Commercial & Enterprise-Level Solution

WilsonPro Pro 1100

Pro 1100 (75 Ohm & 50 Ohm)

wilsonpro pro 1100 75 ohm and 50 ohm sku 461147 sku 460127

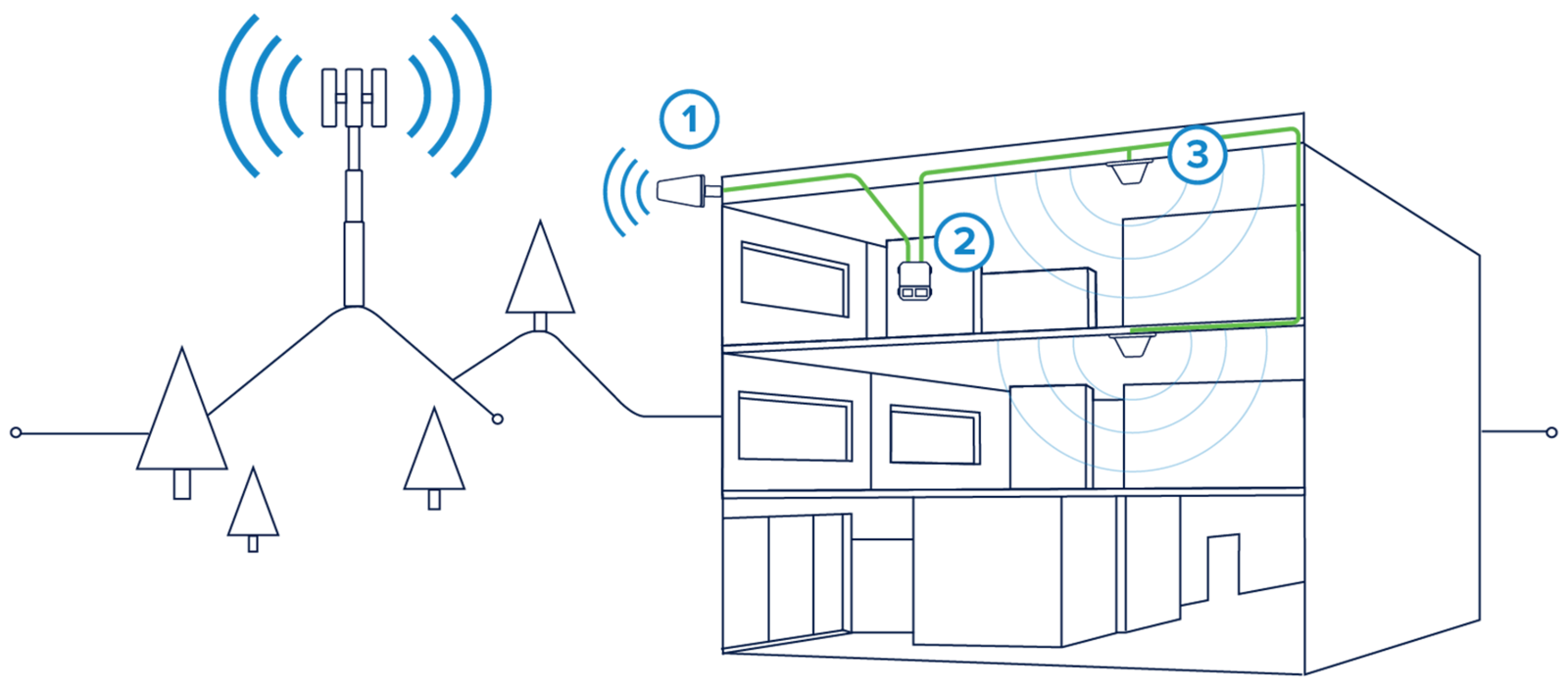

How it Works

how it works wilsonpro pro 1100





Using an outside antenna, the amplifier (booster) system detects and collects the existing cell signal from outdoors.





The amplifier receives this signal through an outside antenna cable; boosting it to produce the best possible cell signal.





Using inside antennas, the amplifier broadcasts the boosted signal indoors for use by anyone with a phone or cellular device.





Product Description (75 Ohm)

Surprisingly powerful among its product category and price range, the WilsonPro Pro 1100 is part of our next generation professional-grade cell signal amplification technology.

Designed to reach faraway cell towers, the Pro 1100 boasts a remarkable uplink power of up to 25 dBm and 15 dBm in downlink—roughly twice the power of competing amplifiers at its price point. With its built-in XDR technology, the Pro1100 offers continuous connectivity in a 35,000 sq. ft. coverage area—never overloading or shutting down due to a strong outside cell signal.

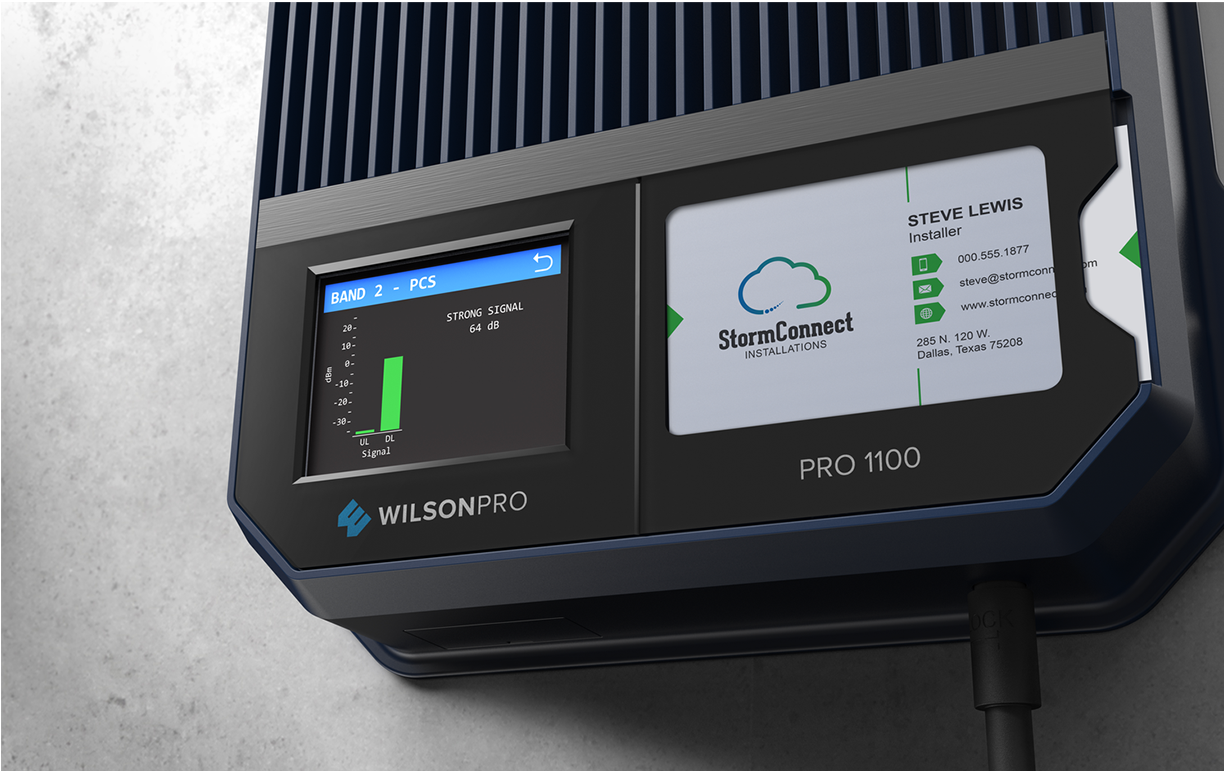

For greater control and usability, the Pro 1100 utilizes a color LCD touch screen, allowing users to troubleshoot, assess performance, adjust the outside antenna, and turn bands on and off. Its modern, intuitive design makes for easier antenna connection and wall-mount installation.

5G Ready - WilsonPro cellular signal amplifiers will work for the next decade and beyond.



Key Features: Pro 1100 - 75 Ohm (Model: 461147)

  • XDR Technology (eXtended Dynamic Range) automatically adjusts gain and will remain operational, even in the presence of a very strong outside signal
  • +25 dBm maximum uplink power, +15 dBm maximum downlink power
  • Covers up to 35,000 sq. ft. with enhanced cell signal on all available network speeds
  • Ability to turn off specific frequency bands
  • Color LCD touchscreen display, indicating gain and power levels of each band, for easy antenna setup, control, and troubleshooting
  • Choice of 50 Ohm “N” or 75 Ohm “F” connectors per cable preference
  • FCC-approved and compatible with all major US mobile carrier networks



Specs

Model 461147
Connectors F-Female
Dimensions 9 x 10 x 2 in
Frequency

Band 4 1700/2100 MHz

Band 13 700 MHz

Band 25 1900 MHz

Band 12 700 MHz

Band 5 850 MHz

Impedance 75 Ohm
Max Gain 70 dB
Power 110 - 240 V AC, 50 - 60 Hz, 30 W
Weight 6.22 lbs





Product Description (50 Ohm)

Surprisingly powerful among its product category and price range, the WilsonPro Pro 1100 is part of our next generation professional-grade cell signal amplification technology.

Designed to reach far away cell towers, the Pro 1100 boasts a remarkable uplink power of up to 25 dBm and 15 dBm in downlink—roughly twice the power of competing amplifiers at its price point. With its built-in XDR technology, the Pro 1100 offers continuous connectivity in a 35,000 sq. ft. coverage area—never overloading or shutting down due to a strong outside cell signal.

For greater control and usability, the Pro 1100 utilizes a color LCD touch screen, allowing users to troubleshoot, assess performance, adjust the outside antenna, and turn bands on and off. Its modern, intuitive design makes for easier antenna connection and wall-mount installation.

5G Ready - WilsonPro cellular signal amplifiers will work for the next decade and beyond.



Key Features: Pro 1100 - 50 Ohm (Model: 460147)

  • XDR Technology (eXtended Dynamic Range) automatically adjusts gain and will remain operational, even in the presence of a very strong outside signal
  • +25 dBm maximum uplink power, +15 dBm maximum downlink power
  • Covers up to 35,000 sq. ft. with enhanced cell signal on all available network speeds
  • Ability to turn off specific frequency bands
  • Color LCD touchscreen display, indicating gain and power levels of each band, for easy antenna setup, control, and troubleshooting
  • Choice of 50 Ohm “N” or 75 Ohm “F” connectors per cable preference
  • FCC-approved and compatible with all major US mobile carrier networks



Specs

Model 460147
Connectors N-Female
Dimensions 9 x 10 x 2 in
Frequency

Band 4 1700/2100 MHz

Band 12 700 MHz

Band 5 850 MHz

Band 25 1900 MHz

Band 13 700 MHz

Impedance 50 Ohm
Max Gain 70 dB
Power 110 - 240 V AC, 50 - 60 Hz, 30 W
Weight 6.28 lbs





More Photos

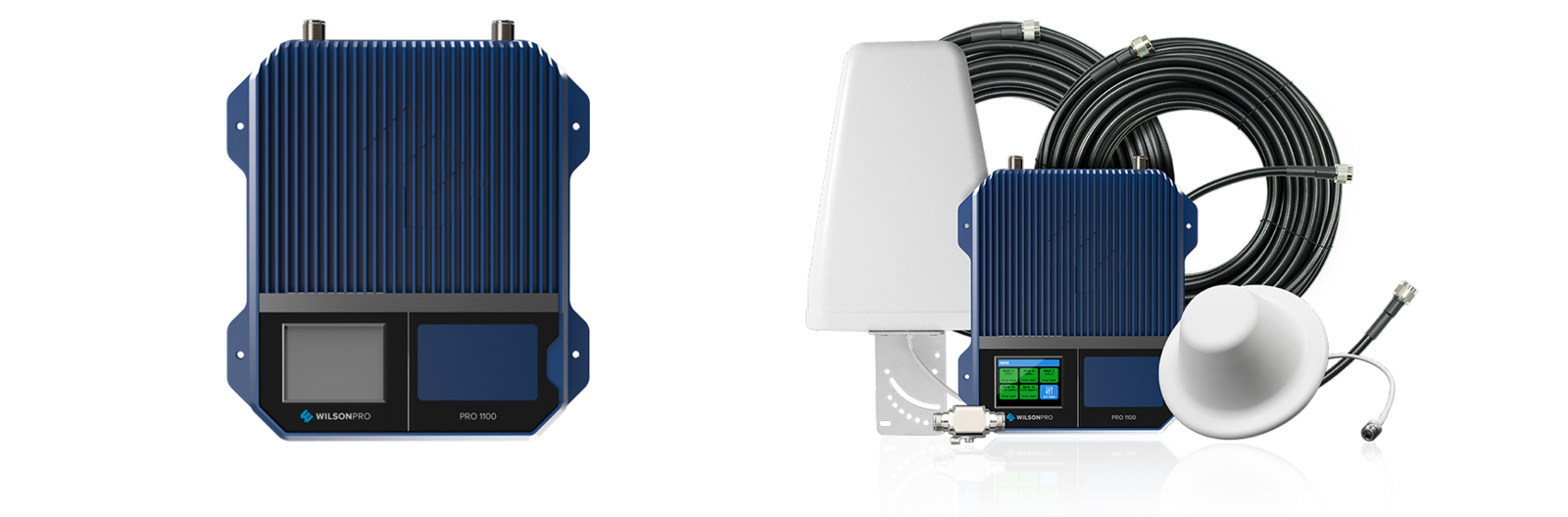

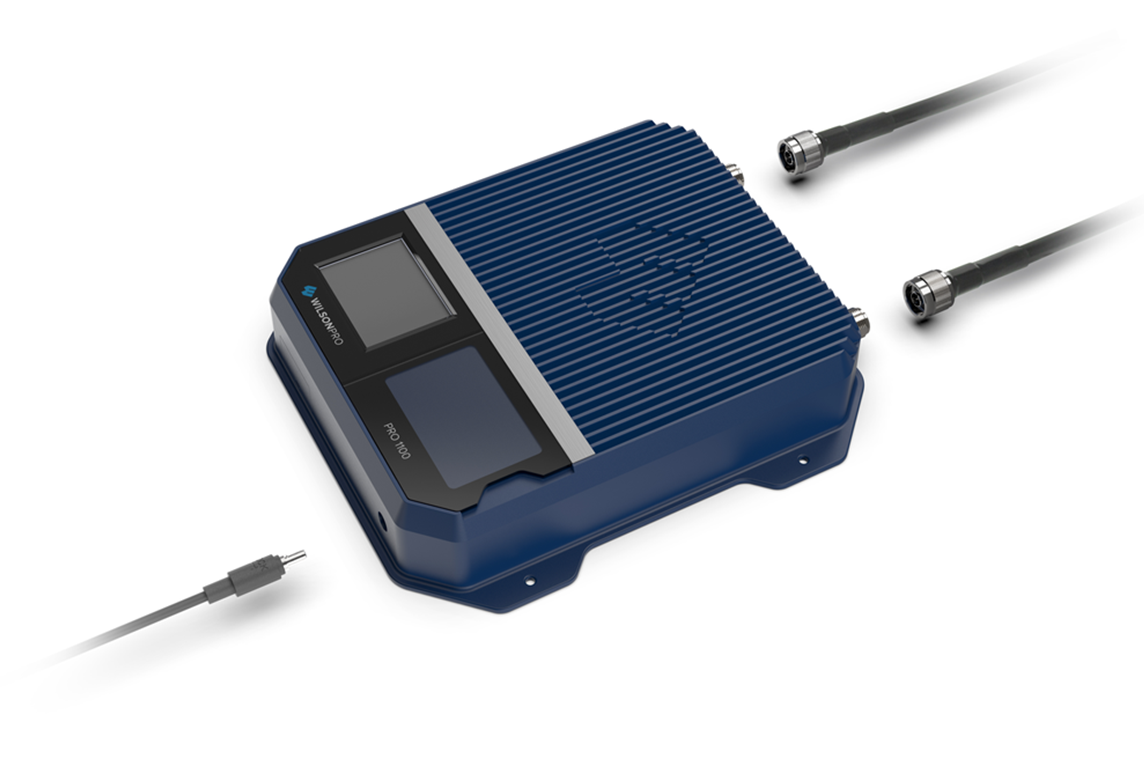

wilson electronics wilsonpro pro 1100 model 460147 461147

wilson electronics wilsonpro pro 100 sku 460147 461147
